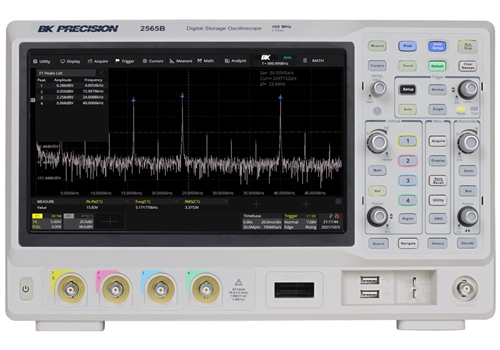

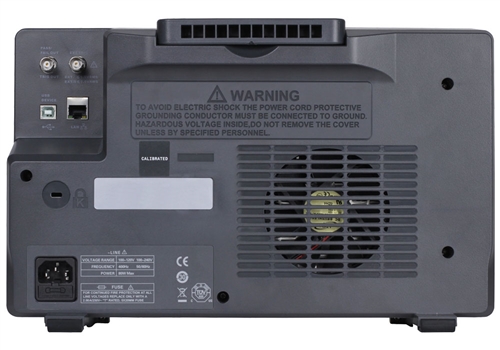

BK Precision 2565B - 2 GSa/s 4 Channel Digital Storage Oscilloscope, 100 MHz

BK Precision 2565B - 2 GSa/s 4 Channel Digital Storage Oscilloscope, 100 MHz

Alternative Views:


List Price: $2,315.00


Availability: Usually Ships in 4 to 6 Weeks
Product Code: 2565B

Description Application Notes

Features

The 2560B Digital Storage (DSO) and Mixed Signal Oscilloscope (MSO) series expands debugging capabilities with new and improved features not found in previous models. Each model provides 4 channels with 200 Mpts memory depth and a maximum sample rate of 2 GSa/s.

Equipped with a 10.1” (1024 x 600) capacitive touchscreen and high waveform update rate of 120,000 waveforms per second, these oscilloscopes can capture infrequent glitches with excellent signal fidelity.

The logic analyzer and decode software provide 16 additional digital channels and serial bus decoding support for I2 C, SPI, UART, CAN and LIN protocols.

Maximize productivity with an extensive list of features including trigger zones, waveform recording, pass/fail limit testing and automatic measurements. Display frequency response characteristics using the Bode plot feature or evaluate switching power supplies using the power analysis tool. Standard in all models, the integrated 50 MHz DDS waveform generator provides stimulus output of sine, square, ramp, pulse, noise, DC and arbitrary waveforms to the device under test.

The 2560B series offers a comprehensive set of tools to capture signal anomalies, decode serial bus protocols and ease debug and analysis. Additional options are available for decoding I2 S, FlexRay, CAN FD, MIL-STD-1553B, SENT and Manchester protocols.
