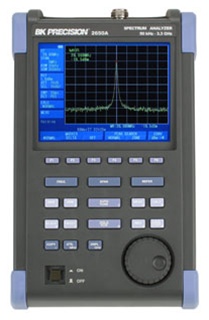

BK Precision 2650A 50 kHz - 3.3 GHz Handheld Spectrum Analyzer. New in Box.	List Price: $6,500.00 Availability: Usually Ships in 4 to 6 Weeks Product Code: 2650A

Description Application Notes   Datasheet PDF Format Frequency range 50 kHz to 3.3 GHz 50 kHz to 8.5 GHz Center frequency Setting 20 kHz resolution Settable with rotary encoder, numeric or function key Accuracy within ± (30+20T) kHz±1 dot @frequency span: 200 kHz to 10 MHz, RBW 3 kHz, 23±5 °C within ± (60+300T) kHz±1dot @frequency span: 20 MHz to max. frequency (3.3 GHz or 8.5 GHz), RBW 100 kHz, 23±5 °C T: sweep time (s) RBW frequency error within ±4 kHz @ 3 kHz, 10 kHz, 30 kHz within 20% of RBW @ RBW: 100 kHz, 300 kHz within 10% of RBW @ RBW: 1 MHz, 3 MHz Frequency span Range 0 Hz (zero span), 0 Hz (zero span), 200 kHz to 2 GHz (1-2-5 step) and 200 kHz to 5 GHz (1-2-5 step) and 3.3 GHz (full span) 8.5 GHz (Full span) Accuracy within ±3% ±1dot @ sweep time of 0.3s, 23±5 °C Display resolution 501dots on LCD screen, 1001dots readout via PC # of points per trace (501 dots are visible on the display, 1001 dots of trace data are captured internally and can be transferred to a PC via USB device interface.) Resolution bandwidth 3 dB bandwidth Range 3 kHz to 3 MHz (1-3 sequence) and AUTO Accuracy ±20% Shape Factor 1:12 (typical, 3 dB : 60 dB) Video bandwidth 100 Hz to 1 MHz (1-3 step) and AUTO SSB phase noise -90 dBc/Hz (typical) @100 kHz offset, RBW : 3 kHz, VBW : 100 Hz, sweep time: 1 s Spurious response less than -60 dBc Harmonics less than -40 dBc @ ≥ 100 MHz Amplitude section Reference level Range +10 to -60 dBm (1dB step) Accuracy within ± 0.8 dB ± 1 dot @ center frequency : 100 MHz, RBW : 3 MHz, VBW : 1 MHz, REF : -15 dBm, 23±5 °C Unit dBm, dBV, dBmV, dBμV, dBμV/m, dBμA/m (dBμV/m and dBμA/m are used for measurement functions) Average noise level -127 dBm (typical) @ CF : 1 GHz, RBW : 3 kHz, VBW : 100 Hz, Ref. level < - 40 dBm ( preamp automatically ON) Frequency response within ±2.0 dB ± 1 dot @50 kHz to 100 MHz within ±1.0 dB ± 1 dot @100 MHz to max. frequency (3.3 GHz or 8.5 GHz) Input impedance 50 Ω Input VSWR < 2.0 Input attenuator Operating range 0 to 25 dB (1 dB step), coupled with reference level Switching error ±0.6 dB @100 MHz RBW switching error ±0.6 dB Display resolution (vertical) 381 dots/10 div Display scale Scale 10 dB/div, 5 dB/div, 2 dB/div Accuracy ±(0.2 dB+1dot)/2 dB ±(0.4 dB+1dot)/5 dB ±(0.8 dB+1dot)/10 dB ±(1.8 dB+1dot)/83 dB Features Impressive 4 hour battery life; easy-to-replace rechargeable Lithium-Ion battery Fast sweep speed, minimum 10 ms, to help locate and identify elusive, transient interference signals DANL (displayed average noise level) of -127 dBm Large easy-to-read color display, 640 x 480 resolution Measurement functions: channel/adjacent channel power, occupied bandwidth, electric and magnetic field strength Convenient Auto tune function PC Software for remote control and documentation of measurement results (included) Conveniently store measurement results and screen shots in bitmap format to USB flash drive Applications Installation, maintenance, and troubleshooting of wireless communication systems such as W-CDMA/CDMA, GSM, WLAN, WiMAX and Bluetooth Detection of signal interference and undesired emissions TV and broadcasting Antenna alignment Electric field strength measurement with dipole antennas (order M401-M406) Magnetic field strength measurement with magnetic field probe (order PR 26M) Related Products... BK Precision 9205 Multi-Range Programmable DC Power Supply 0-60 Volts, 0-25 Amps. 600 W BK Precision TL130B General Purpose DMM Kit BK Precision 4055B - Función de doble canal de 60 MHz / Generador de forma de onda arbitraria BK Precision CC252 Insulated BNC male to BNC male coaxial cable 2 meter Discontinued Add Our Price: $73.00 Add List Price: $1,115.00 Add Our Price: $19.50 Add BK Precision 9130B Triple Programmable DC Power Supply w/USB Interface. New in Box. BK Precision 9832 Programmable AC Power Sources 0-300 V, 0-20 A, 2000 VA BK Precision 9206 - Multi-Range Programmable DC Power Supply 0-150 Volts, 0-10 Amps. 600 W BK Precision 9833B - Programmable AC Power Source Discontinued Add Discontinued Add Discontinued Add List Price: $8,500.00 Add
