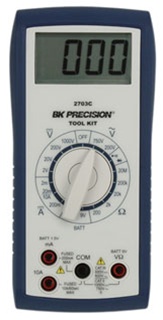

BK Precision 2703C Manual Ranging Tool Kit DMM. New in Box.	List Price: $59.00 Availability: Usually Ships in 4 to 6 Weeks Product Code: 2703C

Description Application Notes   Minimum order: $ 100.00 dollars.  Datasheet PDF Format DC Volts Ranges 2 V, 20 V, 200 V, 1000V Resolution 1 mV, 10 mV, 100 mV, 1 V Accuracy ±(1.2 % rdg + 1 dgts) Input Impedance 10 MΩ Overload Protection 1000 VDC or 750 VACrms AC Volts (50 Hz-500 Hz) Ranges 200 V, 750 V Resolution 100 mV, 1 V Accuracy 200 V range: ±(2.0 % rdg + 5 dgts) 750 V range: ±(2.0 % rdg + 10 dgts) Input Impedance 10 MΩ Overload Protection 1000 VDC or 750 VACrms DC Current Ranges 2 mA, 20 mA, 200 mA, 10 A Resolution 1 uA, 10 uA, 100 uA, 10 mA Accuracy 2 mA to 200 mA ranges: ±(1.5 % rdg + 1 dgts) 10 A range: ±(3.0 % rdg + 3 dgts) Input Protection 0.5 A/500 V & 10 A/600 V fast blow ceramic fuses 10A Input 10 A for 60 sec max. followed by 10 min cooling period Resis tance Ranges 200 Ω, 2 kΩ, 200 kΩ, 20 MΩ Resolution 0.1 Ω, 1.0 Ω, 100 Ω, 10 kΩ, Accuracy 200 Ω to 200 kΩ ranges: ±(1.5 % rdg + 4 dgts) 20 MΩ range: ±(3.0 % rdg + 5 dgts) Open Circuit Voltage (typical) 0.3 VDC (3.0 VDC on 200 Ω) Overload Protection 500 VDC/ACrms Diode Te st Test Current 1.0 mA (typical) Resolution 10 mV Accuracy ±(3.0 % rdg + 3 dgts) Open Circuit Voltage 3.0 VDC (typical) Overload Protection 500 VDC/ACrms Continuity Audible Indication Less than 100 Ω Response Time 100 ms Overload Protection 500 VDC/ACrms General Display 3 1/2 digit, 2000 count LCD Polarity Automatic, positive implied, negative polarity indication Overrange OL or -OL is displayed Low Battery Indication The battery symbol will display when battery voltage drops below operating levels Measurement Rate 2.5 times per second Auto Power Off Approximately 25 minutes Operating Environment 0ºC to 50ºC at <70 % relative humidity Storage Environment -20ºC to 60ºC at 0 to 80 % relative humidity Accuracies Stated accuracy at 23ºC +5ºC at <75 % relative humidity Temperature Coefficient 0.1 x (spec. accuracy) per ºC. (ºC to 18ºC, 28ºC to 50ºC) Power Single 9 volt battery, NEDA 1604, JIS 006P, IEC 6F22 Battery Life 150 hours typical Dimensions 165 mm (H) x 78 mm (W) x 42.5 mm (D) Weight Approximately 10.3 oz. (377 g) with battery and hanger Features Magnetic hanger One-handed operation Measures up to 10 A (DC only) DC voltage to 1000 V AC voltage to 750 V Resistance to 20 Mohm Continuity test Diode test Related Products... BK Precision 601B 6V & 12V Battery Capacity Analyzer BK Precision 9832 Programmable AC Power Sources 0-300 V, 0-20 A, 2000 VA BK Precision 9205B - Multi-Range Programmable DC Power Supply, 600W, 60V, 25A, NO GPIB BK Precision 9130B Triple Programmable DC Power Supply w/USB Interface. New in Box. List Price: $525.00 Add Discontinued Add List Price: $1,780.00 Add Discontinued Add BK Precision 4053B - 10 MHz Dual Channel Function / Arbitrary Waveform Generator BK Precision 2567B - 2 GSa/s 4 Channel Digital Storage Oscilloscope, 200 MHz BK Precision 9202 Multi-Range Programmable DC Power Supply 0-60 Volts, 0-15 Amps. 360 W BK Precision 9173B - Dual Channel Programmable DC Power Supply List Price: $785.00 Add List Price: $3,050.00 Add Discontinued Add List Price: $1,655.00 Add
