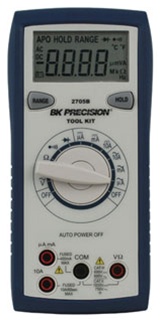

BK Precision 2705B Auto Ranging Tool Kit DMM. New in Box.

Home > SHOP ALL PRODUCTS > Brands > BK Precision >

List Price: $79.00

Availability: Usually Ships in 2 to 4 Weeks
Product Code: 2705B

Description

Application Notes

Minimum order: $ 100.00 dollars.

Datasheet PDF Format

DC Volts

Ranges 400 mV, 4 V, 40 V, 400 V, 1000V

Resolution 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V

Accuracy ±(1.0 % rdg + 2 dgts)

Input Impedance 400 mV: >100 MΩ; 4 V: 10 MΩ; 40 V to1000 V: 9.1 MΩ

Overload Protection 1000 VDC or 750 VACrms

AC Volts (50 Hz-500 Hz)

Ranges 400 mV, 4 V, 40 V, 400 V, 750V

Resolution 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V

Accuracy 400 mV range at 50 Hz to 100 Hz ±(2.0 % rdg + 5 dgts)

Input Impedance 400 mV: >100 MΩ; 4 V: 10 MW; 40 V to 750 V: 9.1 MΩ

Overload Protection 1000 VDC or 750 VACrms

DC Current

Ranges 400 uA, 4000 uA, 40 mA, 400 mA, 10 A

Resolution 0.1 uA, 1 uA, 10 uA, 100 uA, 10 mA

Accuracy 400 uA to 400 mA ranges: ±(2.0 % rdg + 2 dgts)

10 A range: ±(3.0 % rdg + 3 dgts)

Input Protection 0.5 A/500 V & 10 A/600 V fast blow ceramic fuses

10A Input 10 A for 60 sec max. followed by a 10 minute cooling period

AC Current (50 Hz-500 Hz)

Ranges 400 uA, 4000 uA, 40 mA, 400 mA, 10 A

Resolution 0.1 uA, 1 uA, 10 uA, 100 uA, 10 mA

Accuracy 20 mA to 200 mA ranges: ±(2.0 % rdg + 8 dgts)

10 A range: ±(3.5 % rdg + 8 dgts)

Input Protection 0.5 A/500 V & 10 A/600 V fast blow ceramic fuses

10A Input 10 A for 60 sec max. followed by a 10 minute cooling period

Resis tance

Ranges 400 Ω, 4 kΩ, 400 kΩ, 40 MΩ

Resolution 0.1 Ω, 1.0 Ω, 100 Ω, 10 kΩ,

Accuracy 400 Ω to 400 kΩ ranges: ±(1.5 % rdg + 4 dgts)

4 MΩ range: ±(2.5 % rdg + 4 dgts)

40 MΩ range: ±(5.0 % rdg + 4 dgts)

Open Circuit Voltage (typical) -0.45 VDC (-1.2 VDC on 400 Ω range)

Overload Protection 500 VDC/ACrms

Diode Te st

Test Current 1.0 mA (typical)

Resolution 10 mV

Accuracy ±(3.0 % rdg + 3 dgts)

Audible Indication <0.25 V

Open Circuit Voltage 3.0 VDC (typical)

Overload Protection 500 VDC/ACrms

Continuity

Audible Indication Less than 25 Ω

Response Time 500 ms

Overload Protection 500 VDC/ACrms

General

Display 3 3/4 digit, 3400 count LCD

Polarity Automatic, positive implied, negative polarity indication

Overrange OL or -OL is displayed

Low Battery Indication The battery symbol will display when battery voltage drops

below operating levels

Measurement Rate 2 times per second

Auto Power Off Approximately 10 minutes

Operating Environment 0ºC to 50ºC at <70 % relative humidity

Storage Environment -20ºC to 60ºC at 0 to 80 % relative humidity

Accuracies Stated accuracy at 23ºC ±5ºC at <75 % relative humidity

Temperature Coefficient 0.1 x (specified accuracy) per ºC. (ºC to 18ºC, 28ºC to 50ºC)

Power Single standard 9 volt battery, NEDA 1604, JIS 006P, IEC 6F22

Battery Life 150 hours typical

Dimensions 165 mm (H) x 78 mm (W) x 42.5 mm (D)

Weight Approximately 10.3 oz. (377 g) with battery and hange

Features

Magnetic hanger
One-handed operation
Auto/manual ranging
Auto power off
Measures up to 10 A (AC & DC)
DC voltage to 1000 V
AC voltage to 750 V
Resistance to 40 Mohm
Continuity test
Diode test
