Server Cabinet Features
- Welded 12-gauge steel frame with 907 kg. [2000 lb.] static load capacity
- Fully gasketed locking front door with viewing window
- Fully gasketed locking rear door
- Gland plate in top for cable entry/exit
- Brushed grommet cable entry/exit in bottom
- Remote monitoring capability
AC Unit Features
- Designed to mount on the side of the enclosure while maintaining NEMA 12, 3R, 4, or 4X integrity.
- Digital temperature controller with alarm
- 120V standard 230V Optional
- Built-in condensate evaporator
- Efficient, quiet, long lasting rotary compressor
- Environment friendly HFC refrigerant
- Easy pull-out filter
- UL Listed
Specifications
- Welded 12-gauge steel frame
- Rails have square holes with EIA 310-D spacing
Paint / Finish
- Color: Select from one of nine proprietary color options. Sample kits are available upon request.
- Our products are finished in textured powder paint. Powder coating provides a durable high-quality finish.
Load Rating
- Static Load Rating: 907 kg. [2000 lb.]
- A cabinet has a static load when:
- It is in its final, permanent, fully secured location, and
- Its load is uniformly applied to the two sets of rack-mounting rails
- Never move a cabinet with its maximum static load applied.
Industry Standards
Pre-configured Server Cabinets
It’s about saving time without compromise —
We have selected the
most common sizes and paired them with the most common accessories to
provide the ultimate datacom solution – FAST!
Call us and we can get your order processed immediately. 507-216-9330

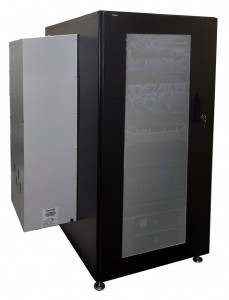

Full Rack – Self-contained Cooling Server Cabinet Systems
Includes:
frame, square hole rails (2 pair), top with gland plate, casters,
levelers, fully gasketed front and rear doors, and AC unit.
| Catalog Number |
Rack
Units |
Server Cabinet
Size* |
AC Unit
Size** |
| DC-40U2442-AC12000-D |
40U |
40U Rack Space
24” Wide | 42” Deep |
12,000 BTU
120V |
|
|
| |
|
|
|
| Catalog Number |
Rack
Units |
Server Cabinet
Size* |
AC Unit
Size** |
| DC-40U2442-AC8000-D |
40U |
40U Rack Space
24” Wide | 42” Deep |
8,000 BTU
120V |
|
|
| *30″ and 36″ deep cabinets available. **230V AC units available. |
Half Rack – Self-contained Cooling Server Cabinet Systems
Includes:
frame, square hole rails (2 pair), top with gland plate, casters,
levelers, fully gasketed front and rear doors, and AC unit.
Catalog Number
RackUnits
Server CabinetSize*
AC UnitSize**
DC-28U2436-AC8000-D
28U
28U Rack Space
24” Wide | 36” Deep
8,000 BTU
120V
Catalog Number
RackUnits
Server CabinetSize*
AC UnitSize**
DC-28U2436-AC6000-D
28U
28U Rack Space
24” Wide | 36” Deep
6,000 BTU
120V
Catalog Number
RackUnits
Server CabinetSize*
AC UnitSize**
DC-28U2436-AC3000-D
28U
28U Rack Space
24” Wide | 36” Deep
3,000 BTU
120V
*30″ and 42″ deep cabinets available. **230V AC units available.
