GW Instek - The comparison of Waveform Update Rate, Digital Oscilloscope GDS 1000B vs DS 1000Z
GDS-1000B SpecificationsGDS-1054B Channels 4
Bandwidth DC ~ 50MHz (–3dB)
Rise Time 5ns
Bandwidth Limit 20MHz GDS-1072B Channels 2 + Ext
Bandwidth DC ~ 70MHz (–3dB)
Rise Time 5ns
Bandwidth Limit 20MHz GDS-1074B Channels 4
Bandwidth DC ~ 70MHz (–3dB)
Rise Time 5ns
Bandwidth Limit 20MHz GDS-1102B Channels 2 + Ext
Bandwidth DC ~ 100MHz (–3dB)
Rise Time 3.5ns
Bandwidth Limit 20MHz GDS-1104B Channels 4
Bandwidth DC ~ 100MHz (–3dB)
Rise Time 3.5ns
Bandwidth Limit 20MHz VerticalVertical Sensitivity Resolution8 bit :1mV*~10V/divInput CouplingAC, DC, GNDInput Impedance1MΩ// 16pF approx.DC Gain Accuracy*±3%PolarityNormal & InvertMaximum Input Voltage300Vrms, CAT I(300Vrms CAT II with GTP-070A- 4/100A-4 10:1 probe)Offset Position Range1mV/div : ±1.25V2mV/div ~ 100mV/div : ±2.5V200mV/div ~ 10V/div : ±125VWaveform Signal ProcessPlus, -, ×, ÷, FFT, FFTrms, User Defined ExpressionFFT: Spectral magnitude. Set FFT Vertical Scale toLinear RMS or dBV RMS, and FFT Window toRectangular, Hamming, Hanning, or Blackman-Harris TriggerSourceCH1, CH2, CH3*, CH4*, Line, EXT***four channel models only.**two channel models only.Trigger ModeAuto (supports Roll Mode for 100 ms/div andslower), Normal, Single SequenceTrigger TypeEdge, Pulse Width, Video, Pulse Runt, Rise & Fall,Timeout, Alternate, Event-Delay(1~65535 events),Time-Delay(Duration, 4nS~10S), BusHoldoff range4ns to 10sCouplingAC, DC, LF rej., Hf rej., Noise rej.Sensitivity1divExternal TriggerRange±15VSensitivityDC ~ 100MHz Approx. 100mV100MHz ~ 200MHz Approx. 150mVInput Impedance1MΩ±3%~16pFHorizontalTime base Range1ns/div ~ 100s/div (1-2-5 increments)ROLL:100ms/div ~ 100s/divPre-trigger10 div maximumPost-trigger2,000,000 div maximumTimebase Accuracy±50 ppm over any ≥ 1 ms time intervalReal Time Sample Rate1GSa/s max.Record LengthMax. 10MptsAcquisition ModeNormal, Average, Peak Detect, SinglePeak Detection2nS (typical)Averageselectable from 2 to 256X-Y ModeX-Axis InputChannel 1; Channel 3**four channel models onlyY-Axis InputChannel 2; Channel 4**four channel models onlyPhase Shift±3° at 100kHz Cursors and MeasurementCursorsAmplitude, Time, Gating available; Unit:Seconds(s), Hz(1/s), Phase(degree), Ration(%) Automatic Measurement36 sets: Pk-Pk, Max, Min, Amplitude, High, Low,Mean, Cycle Mean, RMS, Cycle RMS, Area, CycleArea, ROVShoot, FOVShoot, RPREShoot,FPREShoot, Frequency, Period, RiseTime, FallTime,+Width, -Width, Duty Cycle, +Pulses, -Pulses,+Edges, -Edges, FRR, FRF, FFR, FFF, LRR, LRF,LFR, LFF, Phase Cursors measurementVoltage difference between cursors ( ΔV) Timedifference between cursors ( ΔT) Auto counter6 digits, range from 2Hz minimum to the ratedbandwidthControl Panel FunctionAutosetSingle-button, automatic setup of all channels forvertical, horizontal and trigger systems, with undoAutosetSave Setup20setSave Waveform24set DisplayTFT LCD Type7" TFT WVGA color displayDisplay Resolution800 horizontal × 480 vertical pixels (WVGA)InterpolationSin(x)/xWaveform DisplayDots, vectors, variable persistence (16ms~4s),infinite persistenceWaveform Update Rate50,000 waveforms per second, maximumDisplay Graticule8 x 10 divisionsDisplay ModeYT, XYInterfaceUSB PortUSB 2.0 High-speed host port X1, USB High-speed2.0 device port X1Ethernet Port(LAN)RJ-45 connector, 10/100Mbps with HP Auto-MDIX (Only for the GDS-1054B, GDS-1074B, GDS-1104B.)Go-NoGo BNC5V Max/10mA TTL open collector outputKensington Style LockRear-panel security slot connects to standardKensington-style lockMiscellaneousMulti-language menuAvailable Operation EnvironmentTemperature: 0°C to 50°C. Relative Humidity ≤80% at 40°C or below; ≤ 45% at 41°C ~ 50°C On-line helpAvailable Dimensions380mmX208mmX127.3mm Weight2.8kg
Accessories
GTP-100A-4 100MHz Passive Probe. Suitable for GDS-1104B, GDS-1102B
GTP-070A-4 70MHz Passive Probe. Suitable for GDS-1074B, GDS-1072B
Optional Accessories
GDB-03 Demo Board
GTL-110 Test lead, BNC to BNC heads
GTL-242 USB cable, USB2.0 A-B type cable 4P
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|

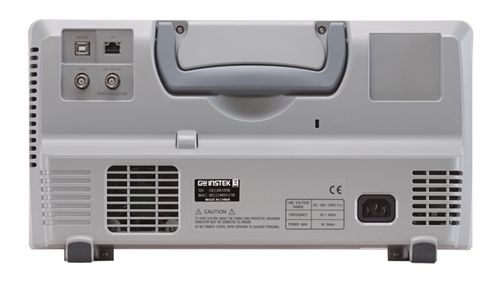

Features
50/70/100MHz bandwidth selections, 2ch or 4ch input- 1GSa/s maximum sampling rate
- 10M maximum memory depth for each channel
- 7” 800 x 480 WXGA LCD display
- 256 color gradient display function to strengthen waveform performance
- 1Mpts FFT frequency domain signal display
- Zero Key function for horizontal time, vertical voltage and triggering
- Compact and innovative exterior design

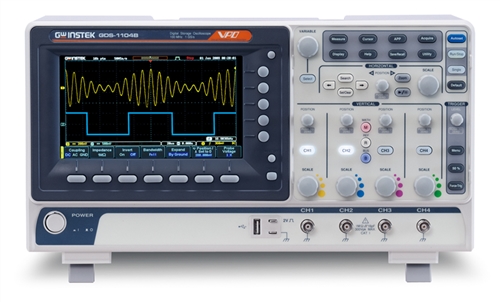

Digital oscilloscopes have entered an epoch-making generation. Innovative design, compact appearance, and abundant functionalities together forge this simple-in-look oscilloscope a very powerful test and measurement instrument which facilitates engineers to easily solve complex measurement issues. This is the latest definition of digital oscilloscope defined by GDS-1000B. The GDS-1000B series demonstrates the impeccable functionalities with an extremely ordinary pricing, which allows customers to realize the true meaning of bigger bang for the buck. Although, the GDS-1000B series is under the category of general purpose oscilloscope, the full functionalities within this simple-in-look oscilloscope, including parameter measurement, cursor indication, digital voltage meter, and data logging, surpasses the same category 1000 series oscilloscopes in the market. All applications of the GDS-1000B series can be applied to the educational field and the fundamental R&D units of the industrial sector.The GDS-1000B series features three bandwidth selections ─ 100 MHz, 70 MHz, 50MHz and equips with analog signal input terminals by four or two channels ( 50MHz only equipped 4 channels input ). The maximum sampling rate for each single channel is 1GSa/s, and the memory depth is 10Mpts per channel independently. The waveform update rate is 50,000wfms/s, which helps users to precisely observe the detailed waveform variation. Additionally, 7” WVGA color LCD display and the 256 color gradient display function together allow waveforms to be observed with the senses of transparency and gradation. With respect to the horizontal time scale adjustment knob and trigger level adjustment knob, GW Instek provides a very thoughtful design ─the zero key function, which allows engineers to work more effectively. For mathematical analysis mode, 1Mpts FFT signal display makes the dull frequency domain signal analysis more delicate. Diversified trigger functions, X-Y mode analysis, and Go/NoGo function arm the GDS-1000B series oscilloscope with higher level measurement technologies. The GDS-1000B series oscilloscope also provides OpenWave connection software, which allows users to conduct waveform observation and data storage controlled by remote PC. Moreover, the innovative exterior design and compact design also bring much convenience to users. Other diversified and charming multi-functional operation demonstrates the concept of complete technology integration. Waveform update rate up to 50,000wfms/s | The GDS-1000B series oscilloscope is under the category of general and fundamental oscilloscope by the market segmentation. Nevertheless, the series arms itself with the waveform update rate up to 50,000wfms/s. Users can input a rapid frequency modulation carrier signal as shown on the diagram. An unsmooth temporarily holding phenomenon will occur while using conventional digital oscilloscopes to measure this signal. As a result, the conventional digital oscilloscopes could not clearly yield the modulation variation process of frequency modulation signals. With the GDS-1000B series oscilloscope, the measurement result will produce not only a smooth waveform modulation variation, but also detailed changes by distinct layers. Engineers could easily grasp the root cause of electric circuits while measuring the unexpected and fast changing signals. The GDS-1000B series is indeed an excellent debugging weapon for the test and measurement industry. |  |
256 color gradient display | With respect to the waveform display technology, the GDS-1000B series oscilloscope is capable of displaying 256 color gradients which can delineate the profound gradational fluctuations; as if it can recreate the analog oscilloscope display capability. When a multi-layer video signal is input, the GDS-1000B series, with 256 color gradient display, has the ability to precisely reveal the colored burst signal and to show details of layers with the brightness. Hence, the dull monochrome waveform is imbued with vitality, which is precisely the unlimited measurement fascination the GDS-1000B series intents to bring to the general purpose oscilloscope arena. |  |
10M memory depth per channel independently | The GDS-1000B series oscilloscope has a powerful and incomparable memory depth for the data retrieving. 10M memory depth per channel independently surpasses the specification of the industry’s 1000 series boundary. 10M memory depth allows users to easily seize the waveform detail while conducting fundamental measurement applications. If a long serial sequent sine waveform is input and the time scale is adjusted to 1mv/div, other 1000 series oscilloscopes for lack of sufficient memory depth will appear a distorted waveform while enlarging the waveform for its details. The GDS-1000B series while enlarging the waveform to 20ns/div reveals a very clear sine waveform detail which is precisely the true value of the GDS-1000B series oscilloscope. |  |
1M FFT mathematical sampling analysis mode | The GDS-1000B series oscilloscope, under the Fast Fourier Transform mathematical analysis mode, is equipped with the 1M memory depth retrieving mode. For the conventional digital oscilloscopes, the FFT mode often has only 1000 point retrieving length; therefore, they can not show the strength distribution of each spectrum quantity under the frequency domain mode. The GDS-1000B series oscilloscope leads the industry to provide the display mode of 1M retrieving points, which can clearly show the detail of each spectrum quantity. On top of that, the 50,000 wfms/s waveform update rate augments the FFT analysis mode to be fast and precise as if a real time spectrum analyzer is used. These features substantially elevate oscilloscope’s signal processing capability for the frequency domain analysis. The diagram illustrates a 200 KHz carrier waveform to be modulated as a standard FM signal with 40 KHz carrier waveform and 5 KHz frequency deviation. Since the GDS-1000B series is equipped with 1M memory depth, a 5 KHz frequency deviation interval can be clearly revealed that allows engineers to fully grasp the measurement details. |  |
Zoom In/Play and Pause Function | The GDS-1000B series provides engineers with partial waveform zoom in function to observe waveform in great details. The display screen can be split into two windows: the upper window shows waveform data log in a long period of time and the marked vicinity of the waveform needed to be zoomed in; the lower window shows the enlarged partial waveform. The function not only allows engineers to make a comparison but also grasp waveform details in the different timeframe. Additionally, the GDS-1000B series also features the play/pause function. For the long waveform observation, the play/pause function facilitates engineers to rapidly skim through the whole section of DUT’s waveforms as well as to swiftly identify waveform’s problems. |  |
Diversified Trigger Functions | The GDS-1000B series oscilloscope is equipped with diversified trigger functions, including Edge Trigger, Delay Trigger, Pulse Width Trigger, and Video Trigger. Engineers, based upon different waveform measurements, can select different trigger functions to lock waveforms in order to identify the root cause of the complicated circuit designs to save development time and to accomplish tasks. |  |
| The GDS-1000B series oscilloscope provides the educational market with some powerful measurement functions. Among them, the X-Y mode display is an excellent example. Teachers and students can use X-Y mode display to conduct Lissajou diagram teaching, which allows users to easily understand the relation between waveforms and frequency while measuring sine waveforms with different frequency by dual channels. For engineers working for the industries, the X-Y mode display can be used to conduct yield rate tests for basic components’ electric conduction and non conduction. Therefore, the X-Y mode display plays an important role in basic oscilloscopes. |  |
| For the industries, the yield rate determination is very important to mass production. The GDS-1000B series oscilloscope provides the Go/NoGo analysis function to accelerate the yield rate analysis. From the right diagram, the Go/NoGo function provides a standard waveform template for examining DUT’s waveforms. The function can freely adjust the size of template. A defect message will be shown if the DUT’s waveform is abnormal and touches the template. The function is not only very useful measurement tool for production lines but also a very convenient tool for engineers to observe waveforms in a long period of time. |  |
Digital Voltage Meter Function For electric circuit measurement and debugging, R&D engineers require oscilloscopes as well as basic voltage meters. The GDS-1000B series oscilloscope equips with a digital voltage meter with three-digit voltage value and five-digit frequency value. Engineers, by pressing the option key, can select the digital voltage meter function from the menu to measure DC/AC voltage, duty cycle, and frequency. Engineers can not only measure waveforms but also monitor the electric parameters of each component on the circuit board. The function is a very convenient tool. *Users need to download this application from GW Instek website* |  |
The GDS-1000B series oscilloscope has the data log function option, which allows users to observe and record waveform changes in a long period of time to ensure product’s reliability and stability. The data log function can set data storage time and interval based on the test requirements. Record time can be set from 5 minutes to 100 hours and the interval can be set as 5 seconds the shortest. Data log formats include waveform and point data in CSV file. Data can be saved to USB, GDS-1000B or remote computer via LAN. It is very user-friendly and also an advanced measurement management tool. *Users need to download this application from GW Instek website* |  |
In electric circuit tests, engineers are often troubled by noise interference while measuring signals. The GDS-1000B series oscilloscope provides the digital filter function option, which can be set as high pass or low pass filter. The filter frequency can be adjusted according to the requirements. The filter parameters of each channel can also be set. The tracking on function can be used to set same filter frequency for all channels. *Users need to download this application from GW Instek website*
|  |  |
36 Measurement Parameter Selections | The GDS-1000B series oscilloscope is equipped with 36 different automatic measurement parameter functions. Users, after obtaining measured waveforms, can select different measurement parameters from Measure key according to different measurement requirements. The GDS-1000B series shows simultaneously eight sets of different measurement parameters on the bottom of the display screen. Users can also select to show all parameters if the preset eight sets are insufficient. Once the selection is made, all 36 measurement parameters will be shown on the center of the display screen. This is a very convenient measurement tool for students writing dissertations or engineers writing reports. |  |  |
OpenWave Connection Software | The GDS-1000B series oscilloscope, via the OpenWave connection software developed by GW Instek, can connect with the PC. Users, after installing USB driver under Windows interface, can connect GDS-1000B with the PC through USB cable and OpenWave software. Waveform interpretation and retrieval can be done from the PC end. Data retrieval and storage can better facilitate users in processing analysis. OpenWave connection software is indeed a very powerful tool for engineers to compile reports or to integrate systems. |  |
|
|
|
|
|
|
|
